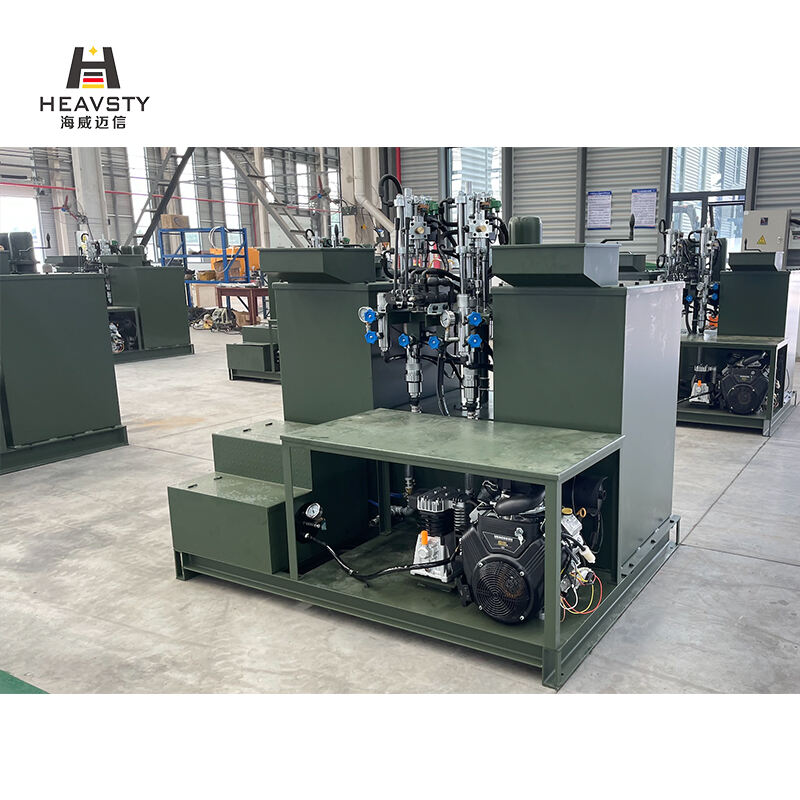

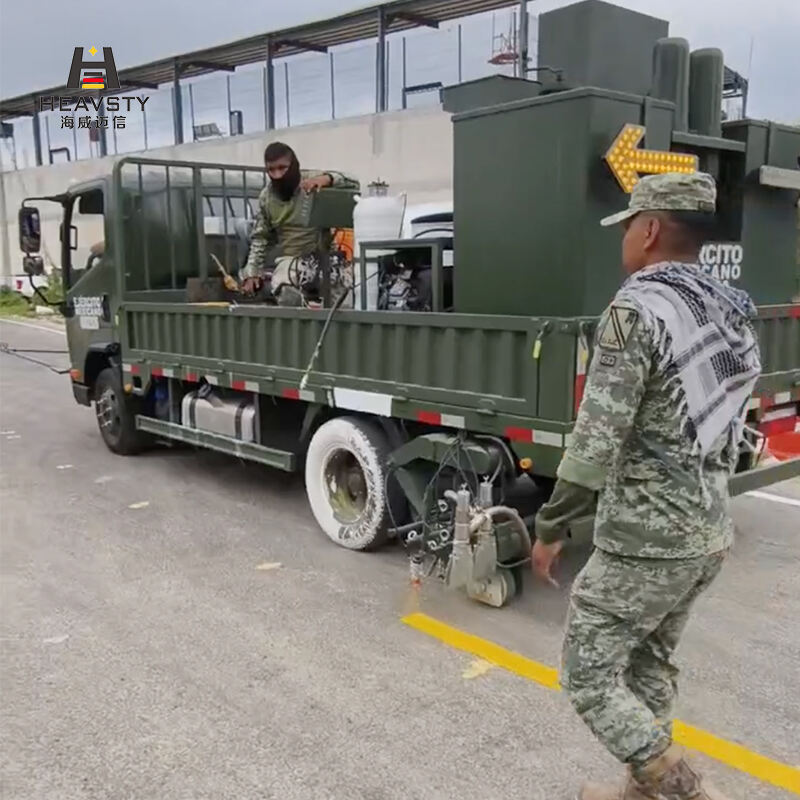

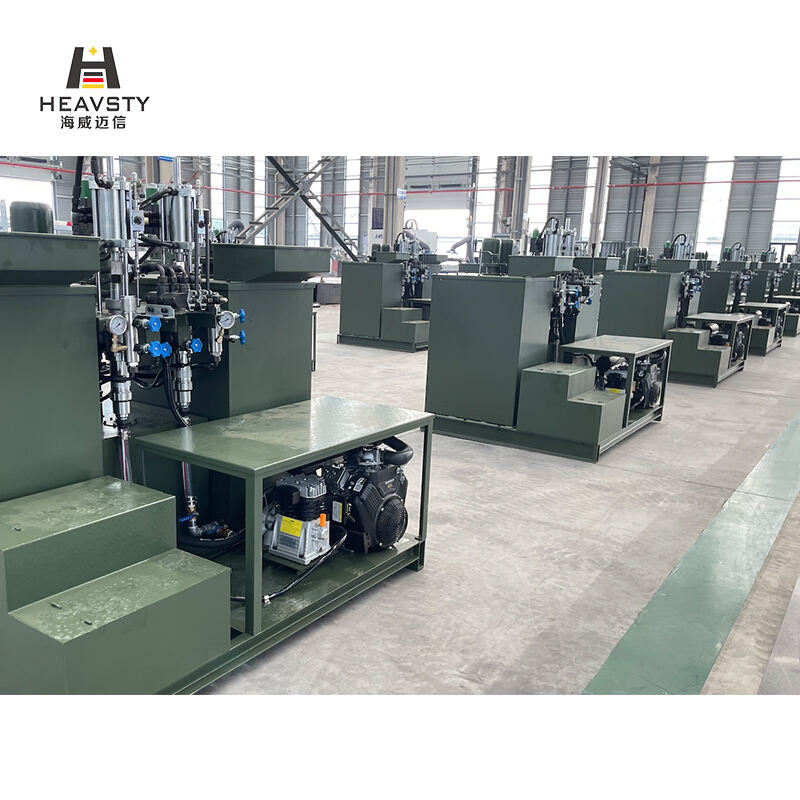

TheHeavsty-18L-2 Dual-Pump Cold Spray Road Marking Machine is a high-end solution for professional traffic line painting. Equipped with dual pumps, dual cylinders, and an automatic walking system, it ensures stable pressure output and precise coating control. This machine is widely used for spraying various road marking paints including cold plastic, water-based, and solvent paints.
Parameter Specification
| Maximum flow | 18L×2 |
| Maximum work pressure | 30Mpa |
| Spraying width | 50-900mm |
| Spraying thickness | 0.2-0.6mm |
| Work performance | Four spray guns can work together |
| Dimension | 1530×1230×1380mm |
| Net weight | 820kg |

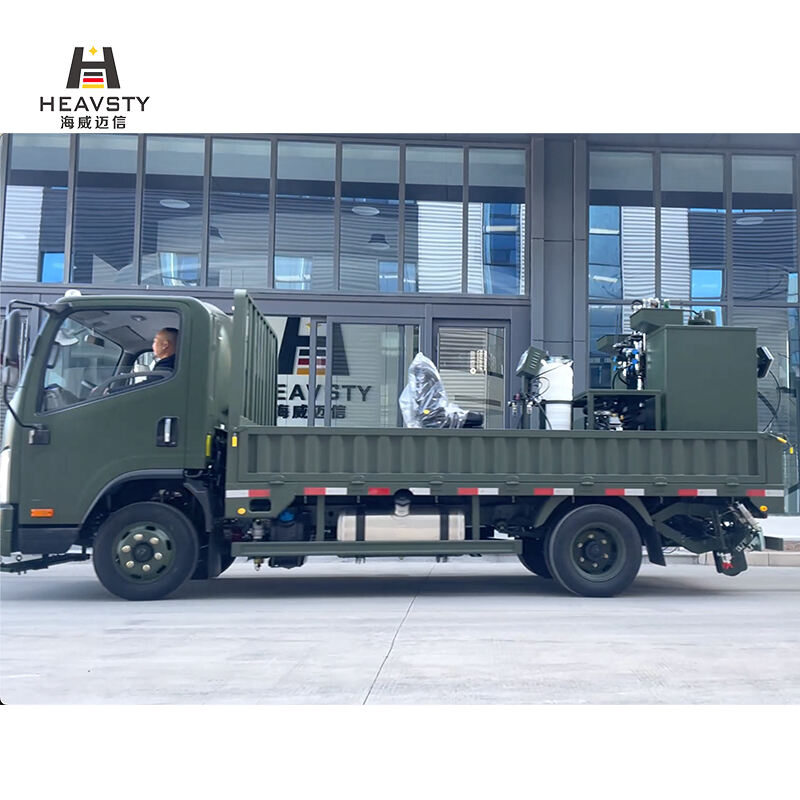

| Main engine configuration | Truck loading configuration |
| 270 Honda engine | Automatic break line machine (SIMENS) |
| Gear pump | Manual controller (SIMENS) |
| Oil tank | Shelf of the spray gun (one group) |
| Pressure regulator | two solenoid valves (COMAZZI) |
| Accumulator | two automatic spray gun |
| Reverser | Four pieces of high pressure tube(3.5m) |
| Reversing oil tank | Rotary encoder(OMRON) |
| Paint high pressure pump | 10m High pressure tube,one manual spray gun |
| Strainer | One Yellow Paint bucket and one white Paint bucket |
| Air compressor | One set of Water line shelf |
