Airport Rubber Removal Technical Parameters
| Working speed | removing rubber ≥ 800- 1000m ²/ h |
| Engine | Weifang Weichai Power (DEUTZ) |
| Power | 255kw |
| Speed | 1800r / min |
| Pump speed | 500 times/min |
| Pressure | 1400bar |
| Flow rate | 85L/min |
| Plunger | cemented carbide 26 |
| High-pressure seal | imported high-quality molded seal |
| cold starvation system | Forced lubrication system and oil cooling system, imported high-quality safety burst diaphragm |
| Full computer monitoring instrument box | oil temperature alarm, water temperature alarm, diesel engine speed, water pressure, voltage display working time, machine fault display, water pressure precision pressure regulation |
| Booster pump | Front booster pump max 6kg booster |
| Filter | double stainless steel vertical filter, two-stage filtration |
| Water supply protection system | including water supply low pressure protection system |
| Recovery system | Sino-Japanese joint venture Zhanghuang vacuum pump, pressure -0.4bar |
| Water tank | clean water tank 6 tons, sewage tank customized according to the model. |
| Fuel tank | 250L |
| Vehicle carrying travel control | constant speed travel controller (without manual control), minimum speed of 5m / min, electronic gear shifting with vehicle gear, constant speed cruise, remote monitoring system of vehicle carrying cab (driver can real-time monitor the rubber removal of rubber removal vehicle through video image in cab), optional rubber removal head is Hammelmann rotator (3 groups of 48 nozzles with 1m width) |
| Host size | 3M * 2.2m * 2.25m, the overall size can be customized according to the model |
| Net weight | 7 tons (excluding trucks) |
| Machine size | 6m×2.2m×2.3m |
| Appearance:Yellow(customizable) |

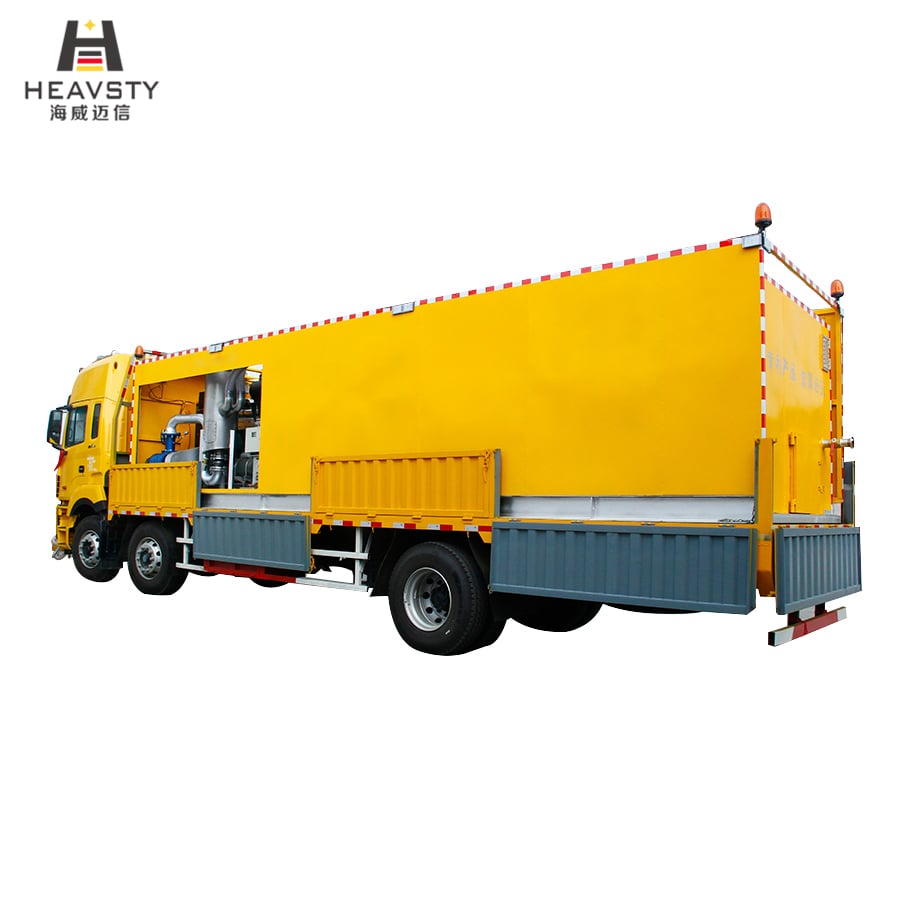

The equipment is integrated with a protective cover, and can be easily separated from the vehicle
