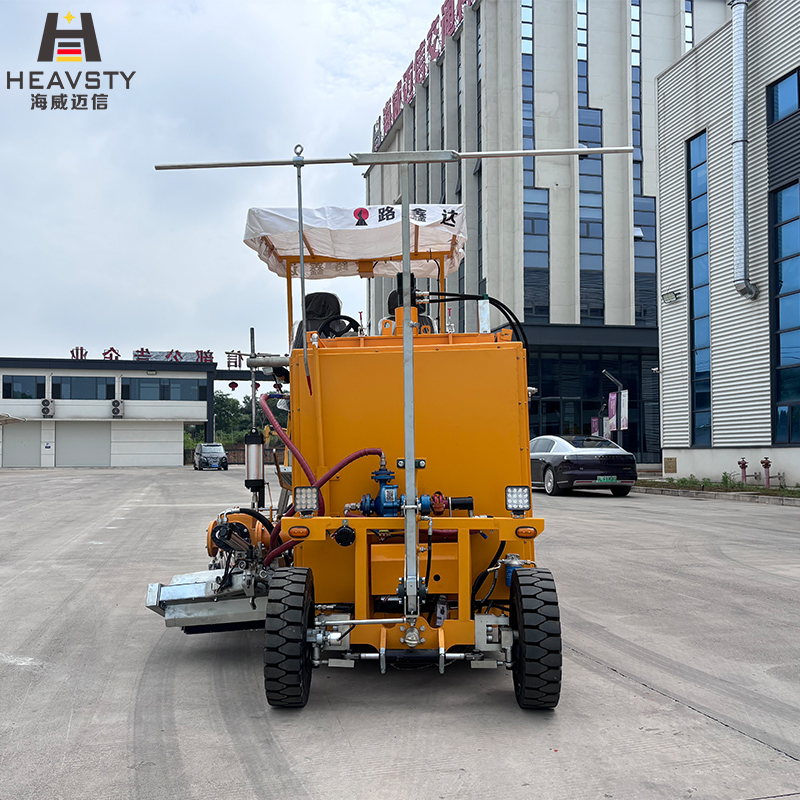

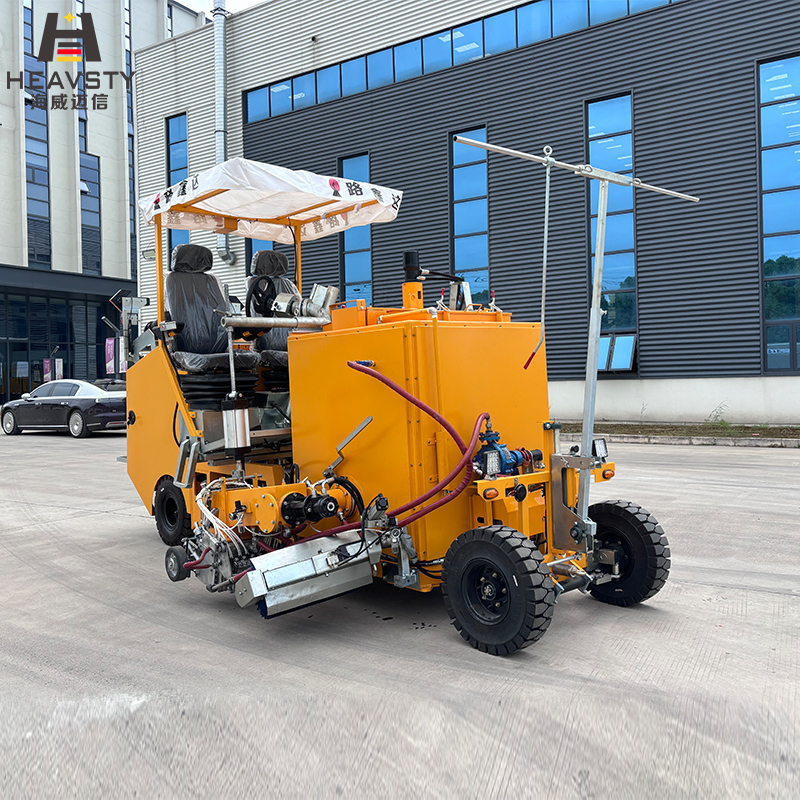

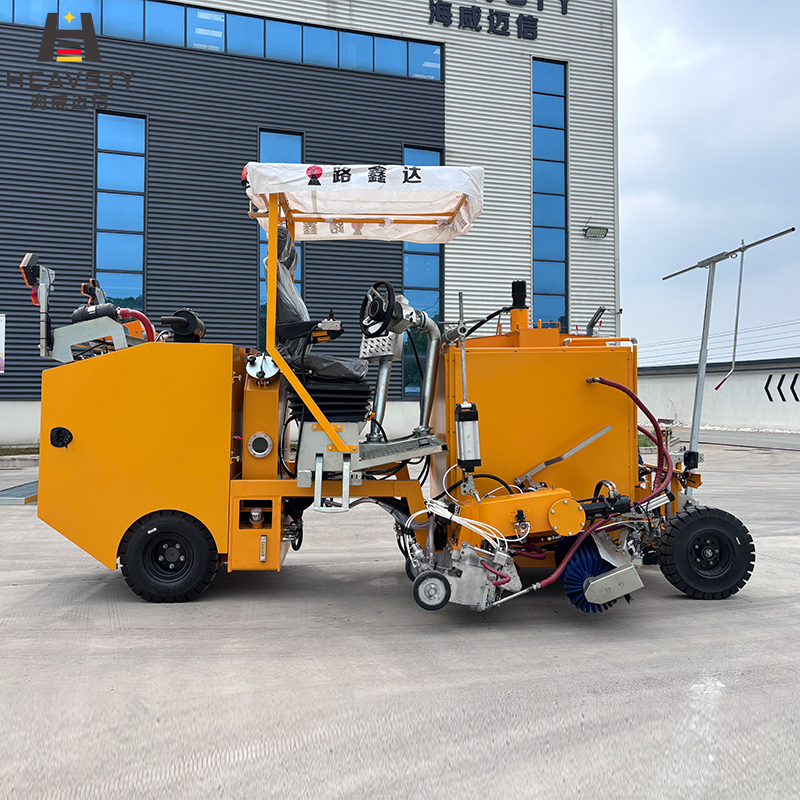

Mid Size Driving Road Marking Extruder Thermoplastic Striping Equipment

Engine

Manufacturer: Kubota

Cooling method: water cooling

Rated power: 47 kW

Cylinder: 4-stroke, 2400 cubic centimeters

Type: Turbocharged (Diesel)

steel

Steering by operating the steering cylinder

Turning radius: 2.8 meters

Steering System: Hydraulic Double Torque Steering

electrical system

12 volts/150 amperes

walk drive brake system (Danfoss)

Hydraulic brake with static hydraulic and simultaneous driving brake, hydraulic multi-disc brake as parking brake

Hydraulic transmission: Used for speed change, forward/reverse

Speed: 0-16 km/h

Marking thickness

With a thickness of 1.5 to 5.0 mm, it can be used on highly rough surfaces such as slurry seal layers.

computer

A full-touch panel with computer-aided precision control, supporting up to 99 different road marking types programmable. Up to 30 marking programs can be organized. Features an 8-inch display and daily marking report transmission. Road marking operation data is accessible online.

Cruise mode

Construction Mode of Constant Speed Cruise Control,Uniform and Stable Marking Quality

Glass bead jar

Pressure-bearing glass bead container enables dual-bead sowing in various specifications

spray gun system

Equipped with a C6 spray gun waterline system, enabling simultaneous marking and waterline application

air compressor capacity

Piston compressor with a capacity of 620L/min and a pressure of 0.8Mpa. Air-cooled system featuring an air cooler equipped with a rainwater separator.

Dash Line

Various drainage structure markings, such as fishbone, rib, checkerboard, and step lines

fuel tankage

Fuel tank capacity: approximately 70 liters

Hydraulic oil tank capacity: approximately 70 liters

Granule capacity: 120 L/185 kg. Pressure (maximum 3 bar)

hot melt tank

1-ton hot-melt tank (non-pressure-resistant) with indirect heating via thermal oil. Computer-controlled temperature regulation automatically adjusts thermal oil and thermoplastic material temperatures according to preset values. Combustor system: Diesel burner system heats thermal oil (and thermoplastic materials), with optional diesel burner configuration. Vertical mixer (stirrer) with hydraulic drive ensures efficient temperature control through central heating pipes. The thermoplastic material achieves perfect melting and homogenization, supported by a structurally stable design.

construction technology

Extrusion construction technique reduces mechanical wear and extends equipment lifespan

Optional

Sunshade canopy, cruise control, quick side switching, dual-sprinkler system with pressurized glass beads, automatic waterline system, and other auxiliary equipment

Dimensions (length, width, height)

Approximately 5*1.7*2.68 meters

total weight

About 3 tons
