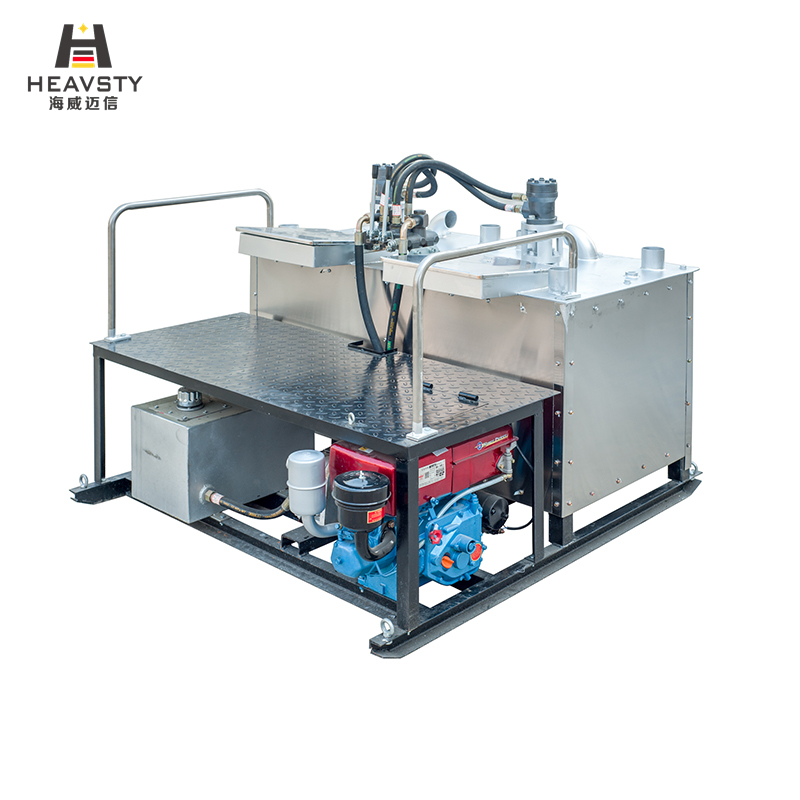

HW500 Hydraulic Dual Cylinder Hot Melt Kettle

It is designed for parking lot,community and other small size road.it has advantages of working long time,easy operation,and simplemaintenance etc.

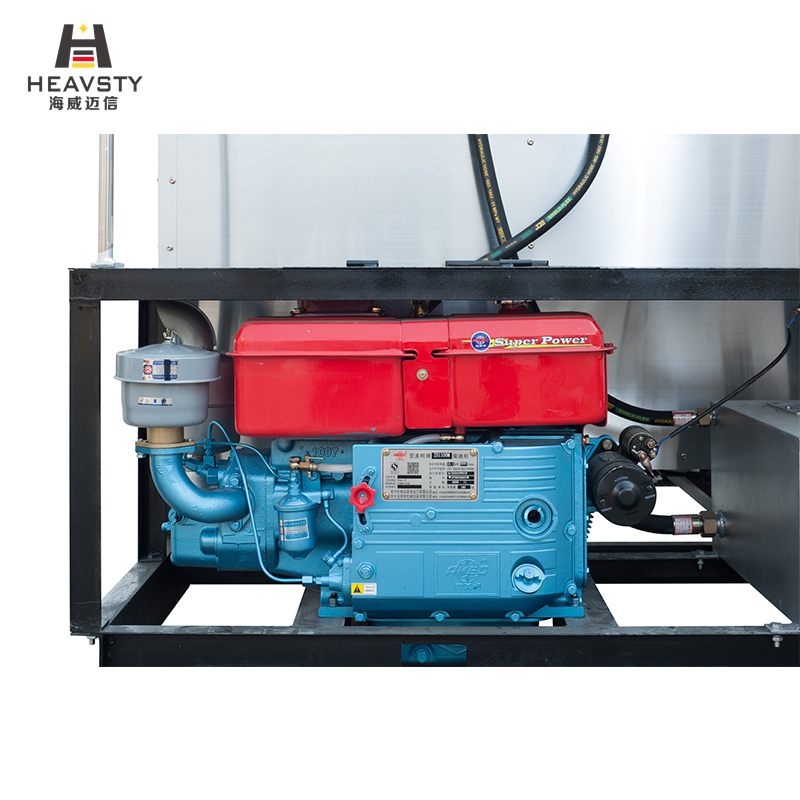

Engine	7.5PS water cooled diesel engine
Hydraulic driving method	The stir shaft is driven by gear pump,multi-way hydraulic valve,overflow valve and hydraulic motor
Paint tank capacity	4000KG
Paint tank	the body is made of stainless steel, and the bottom is made of boiler iron.
Heating mode	LPG(gas tank suggest 50KG) ,Direct injection energy-efficient burner
Hydraulic oil tank	40L
Thermometer	Each container is equipped with thermometer with heating resistance and shock resistance.
Structure	Frame structure,Adopted Stainless steel plate with high strength,heat resistance,and oxidation resistance
Heating System	High-efficient direct injection burner is more efficient and economic,which fueled by liquefied petroleum gas tank.The temperature can be adjusted from 0 to 300 centigradedegree
Heat preservation	Double layer heat insulating material is fixed between inner container and outer layer
Safety device	specially designed automatic overload protection device can protect hydraulic parts from damage when over loaded
Size and Weight	1560×1430×1100mm700kg
