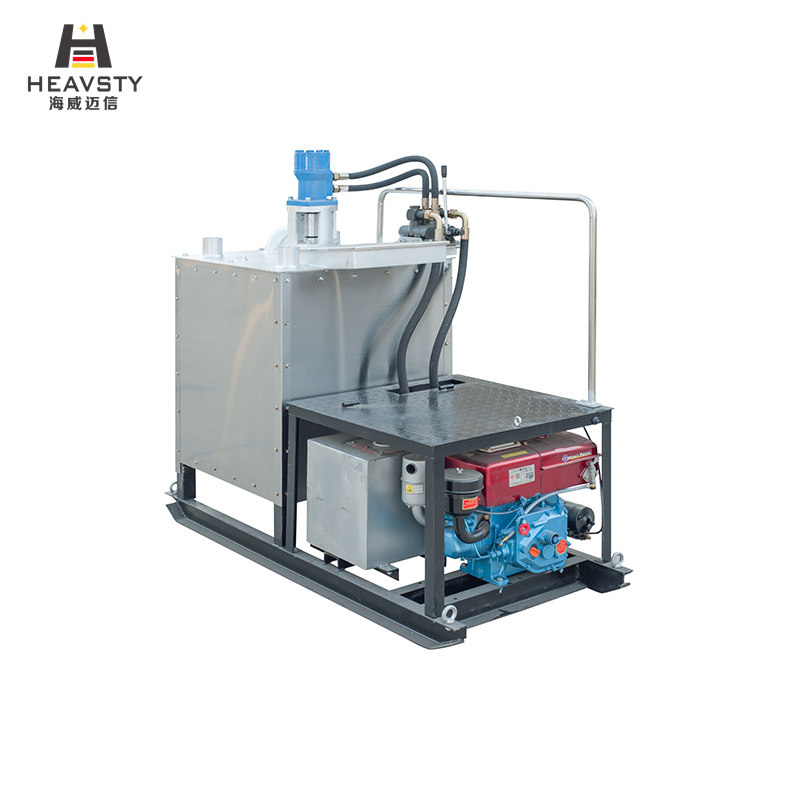

Multi path integration hydraulic transmission and infinitely variable speeds design which can generate powerful torque, to ensure that the machine can operate smoothly under heavy load, also it can stir forward and reverse.
It equipped with stainless steel energy-efficient burner with the advantages of high efficiency,save time and energy,easy operation and simple maintenance.
| Engine | 7.7PS electric strat water-cooled diesel engine |
| Stirring system | Hydraulic stirring system with protective device, can stir clockwise or anti-clockwise. |
| Hydraulic motor Flow Rate | 5.0L/min |
| Paint tank capacity | 350KG |
| Paint tank | Made of boiler iron |
| Heating mode | LPG(gas tank suggest 50KG) ,Direct injection energy-efficient burner |
| Hydraulic oil tank | 40L |
| Thermometer | Each container is equipped with thermometer with heating resistance and shock resistance. |
| Operation Control | The manual dual control valves respectively control two stirrers in the two cylinders. |
| Heat preservation | Double layer heat insulating material is fixed between inner container and outer layer |
| Ventilating exhaust system | Suction-type chimneys at the top of cylinder |
| Discharge Outlet | Lockable discharge trough and the close inter meshing type discharge system. |
| Structure | Frame structure,Adopted Stainless steel plate with high strength,heat resistance,and oxidation resistance |
| Heating temperature | 0~300℃ |
| Size and Weight | 1700×840×1490mm 350kg |
